Bobrick Surface Latch Packet - 1040-42
-
$74.10
Shipping and tax are calculated during checkout.
Available Options
Know your product
Product details

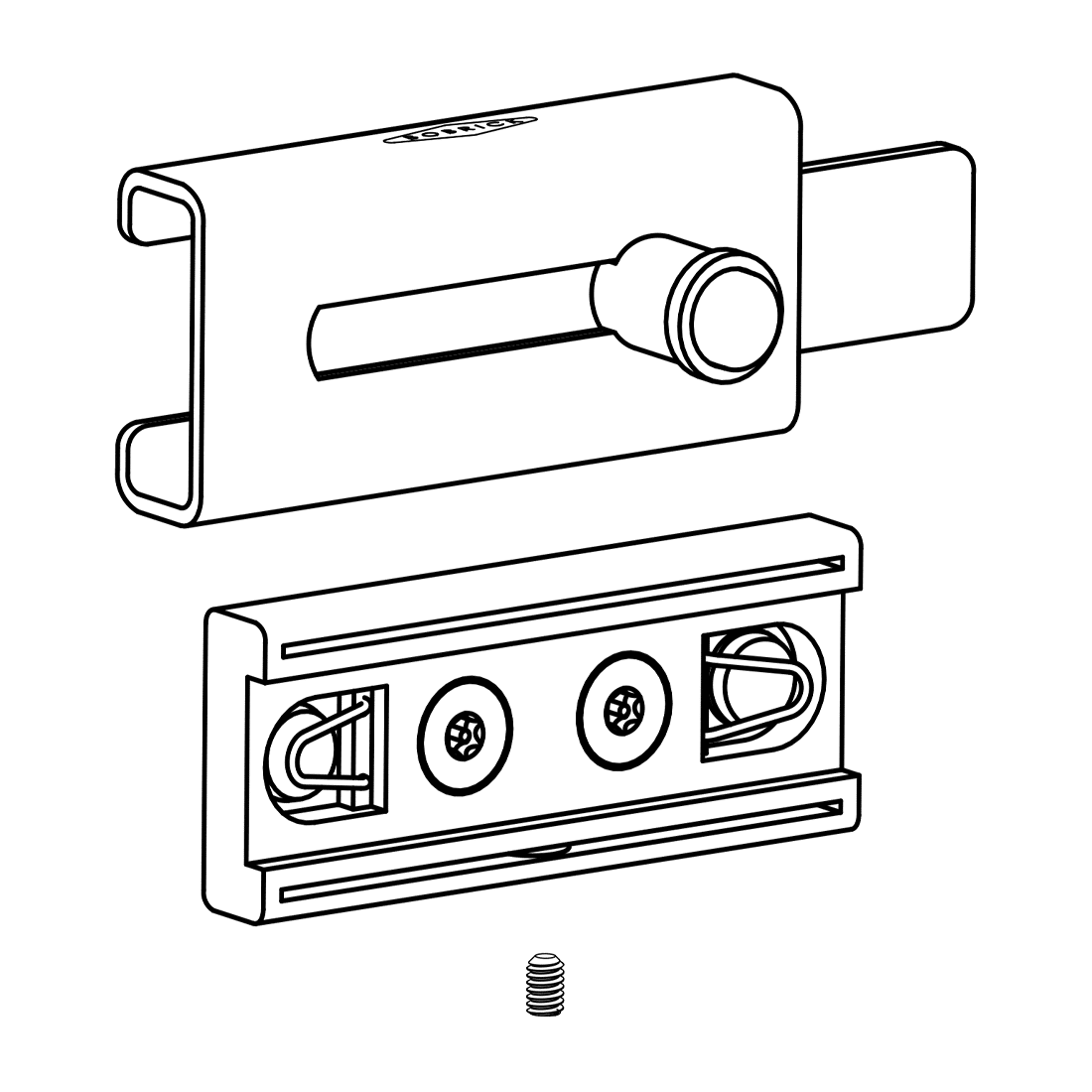

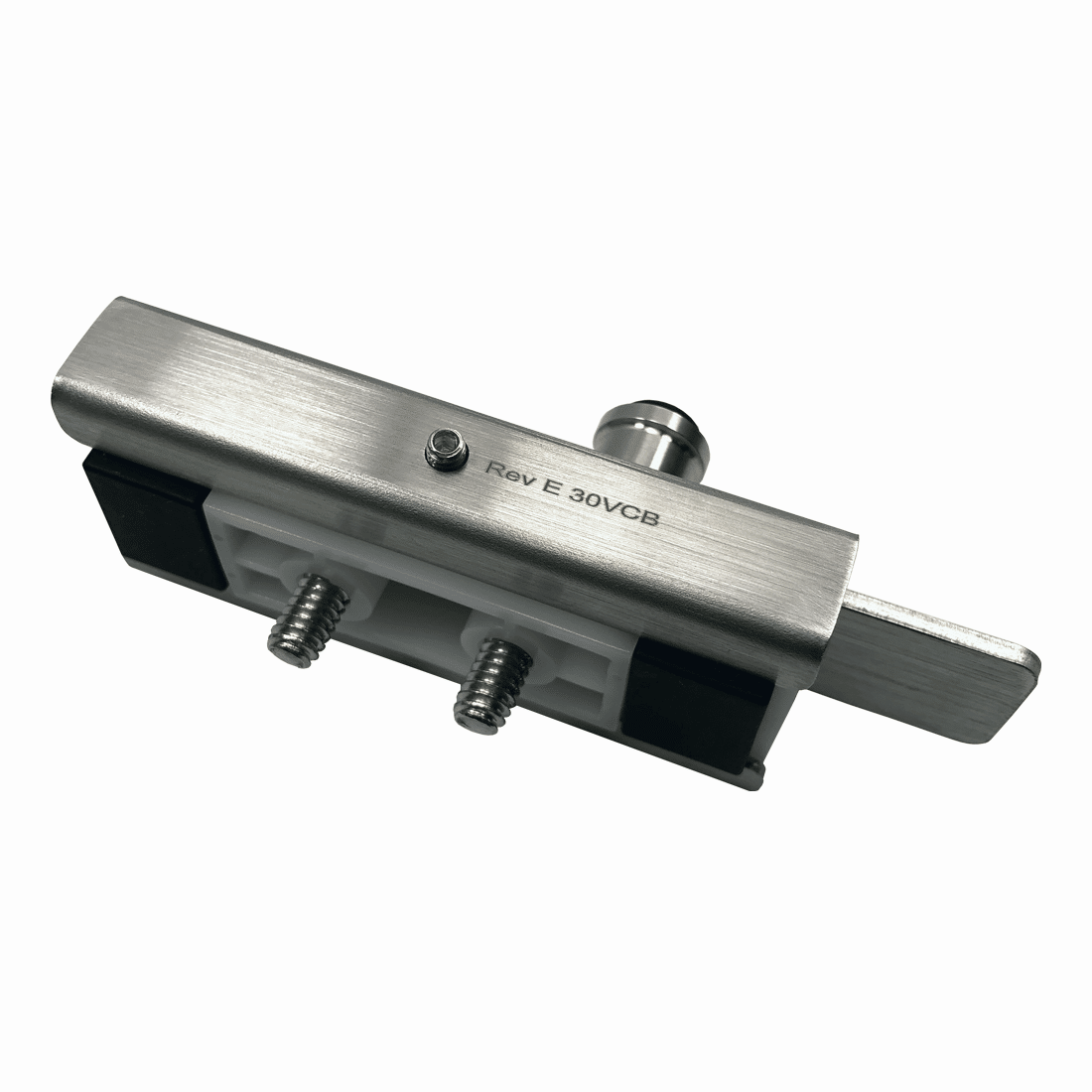

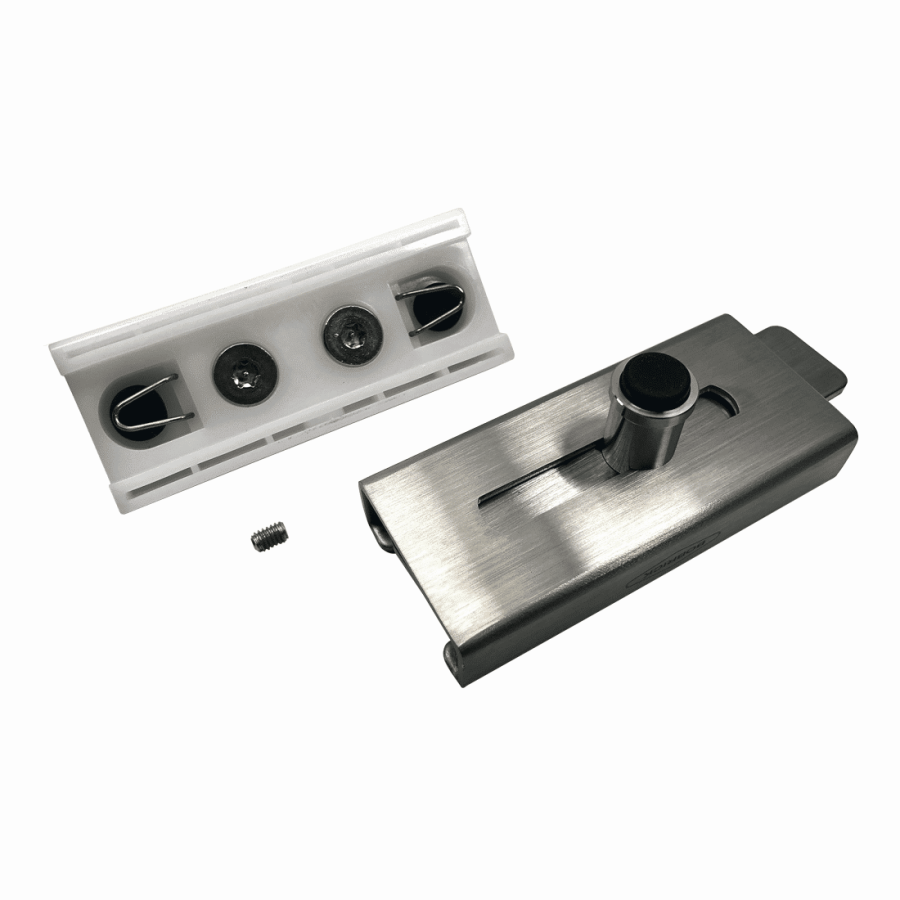

Used with inswing and out-swing Bobrick toilet partitions. The Bobrick Surface-Mounted Latch Packet (1040-42) includes (1) latch track, (1) latch cover assembly, (2) flathead latch screws, and (1) set screw. The latch track attaches to the interior surface of the swinging door panel using the two included flathead latch screws. The latch cover assembly - which integrates the bolt and knob - secures to the latch track using the provided set screw.
OEM hardware, direct from Bobrick
Satin stainless steel finish coordinates with other Bobrick hardware
18-8, type 304 heavy gauge stainless steel construction
At a glance
Product specifications
- SKU / Model
- 1040-42
- Brand
- Bobrick
- Manufacturer
- Bobrick
- Manufacturer Part Number
- 1040-42
- Part Classification
- Manufacturer-original part
- Hardware Type
- Latch hardware
Full product description and documents
Manufacturer: Bobrick
Manufacturer part number: 1040-42
Part type: Manufacturer-original part
Used with inswing and out-swing Bobrick toilet partitions. The Bobrick Surface-Mounted Latch Packet (1040-42) includes (1) latch track, (1) latch cover assembly, (2) flathead latch screws, and (1) set screw. The latch track attaches to the interior surface of the swinging door panel using the two included flathead latch screws. The latch cover assembly - which integrates the bolt and knob - secures to the latch track using the provided set screw.
- OEM hardware, direct from Bobrick
- Satin stainless steel finish coordinates with other Bobrick hardware
- 18-8, type 304 heavy gauge stainless steel construction
- Easily operated with one hand, requiring less than 5 pounds of force - no pinching, tight grasping, or wrist twisting are required, maintaining ADA compliance
- Used to replace the discontinued 1001492 and 1002927 slide latch kits by Bobrick
- Compatible with Bobrick's TrimLineSeries 1030/2030, DesignerSeries 1040/2040, DuraLineSeries 1080/2080 1180/2180 and SierraSeries 1090
Before ordering
Confirm the manufacturer part number, partition material, dimensions, door or panel thickness, door swing, and selected configuration against the existing installation. Toilet partition replacement hardware is not universal.
