Hawa Concepta Back-to-Back Doors Pocket Kit

Clear

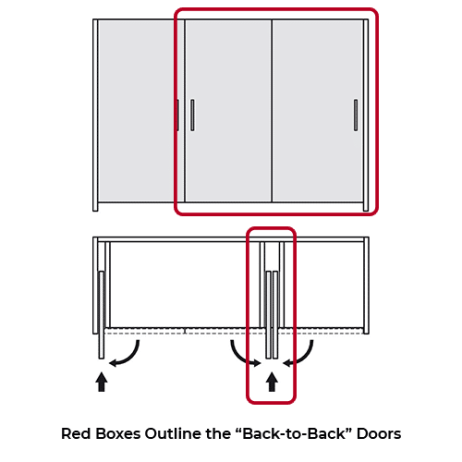

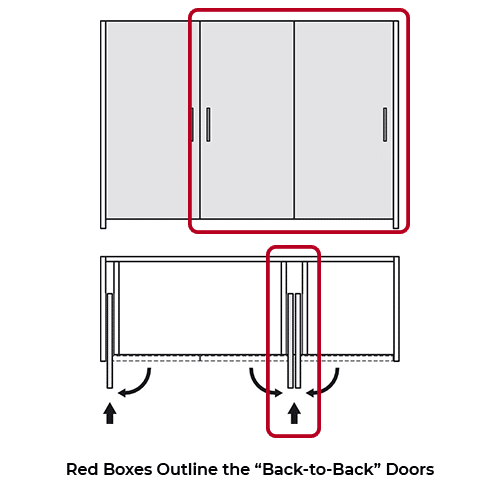

Create a pocket shared by back-to-back doors mounted to Concepta 25, 30, 40, or 50 systems. Each kit contains hardware to make one pocket for two back-to-back pivot/sliding door panels. Consider cabinet depth and base style when ordering.

SKU: 408.30.093 + 408.30.095 Category: Brand:
Hawa

Description

Kits contain hardware necessary to create a pocket (between cabinets) for (2) pivot/sliding door panels, in a back-to-back configuration. To be used with Hawa Concepta 25, 30, 40, and 50 systems. Determine your cabinets’ depths and if your cabinets are mounted on a fixed continuous base or are on separate bases (for example, on base cabinet feet).

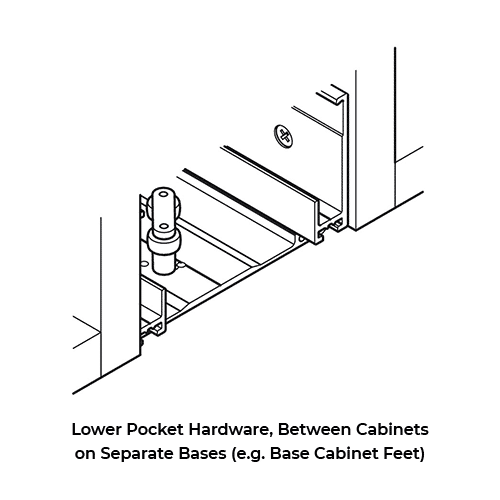

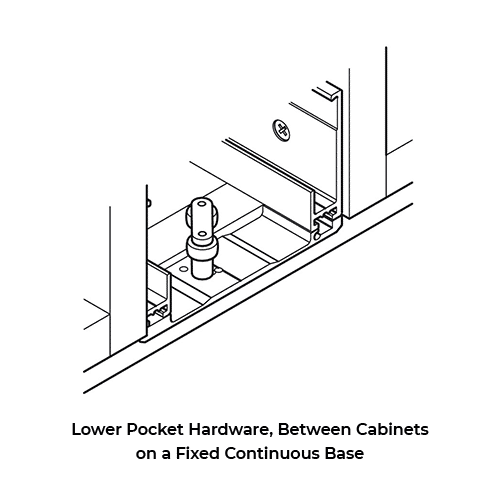

For cabinets on a continuous base that are less than or equal to ≤ 25-19/32″ in depth, order 408.30.093 + 408.30.095. For cabinets on a continuous base that are between 25-5/8″ and 35-7/16″ deep, order 408.30.094 + 408.30.095. For cabinets on separate bases that are less than or equal to ≤ 25-19/32″ in depth, order 408.30.093 x 2. For cabinets on separate bases that are between 25-5/8″ and 35-7/16″ deep, order 408.30.094 x 2.

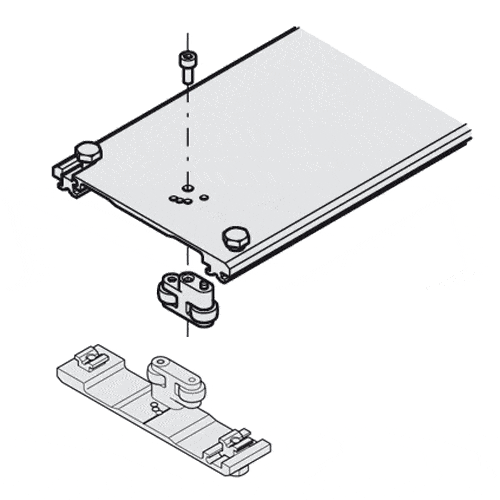

  • 408.30.093 connecting profile (bracket), with guide for two pivot/sliding doors, is 2′ 1-19/32″ (650 mm) long and 4-5/16″ (110 mm) wide. Aluminum with a silver colored anodized finish.
  • 408.30.094 connecting profile (bracket), with guide for two pivot/sliding doors, is 2′ 11-7/16″ (900 mm) long and 4-5/16″ (110 mm) wide. Aluminum with a silver colored anodized finish.
  • 408.30.095 connecting profile (bracket), with guide for two pivot/sliding doors, is 1″ (26 mm) long and 4-5/16″ (110 mm) wide. Aluminum with a silver colored anodized finish.

Additional information

Configuration

Kit for Continuous Base, ≤ 25-19/32" D (408.30.093 + 408.30.095), Kit for Continuous Base, 25-5/8" to 35-7/16" D (408.30.094 + 408.30.095) (+$24.90), Kit for Separate Bases, ≤ 25-19/32" D (408.30.093 x 2) (+$44.25), Kit for Separate Bases, 25-5/8" to 35-7/16" D (408.30.094 x 2) (+$94.06)
