Hawa Junior 80/Z Sliding Door Kit

Select components below to build a Hawa Junior 80/Z Sliding Door Kit. Have questions? Need help? Contact our knowledgeable representatives at 1-800-298-9696 or sales@partitionplus.com.

Hawa

Description

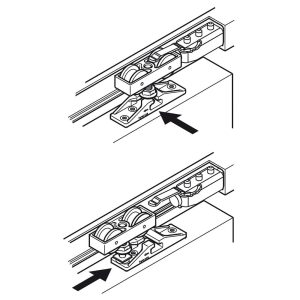

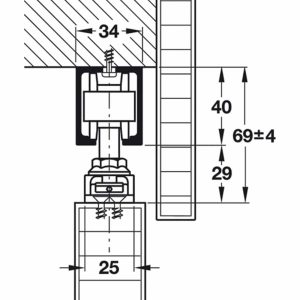

The Hawa Junior 80/Z is a top hung sliding door hardware system for use with wooden door panels. Junior 80/Z is so named because the system can support a maximum door panel weight of 176 pounds (or 80 kilograms). The “Z” in the Junior 80/ name refers to the way the running gear attach to the door panel. “Z” indicates that the system uses flat, horizontal suspension plates that screw directly into the top edge of the door. The plates then attach to the rolling gear. Note that “B” hardware reduces the gap between the top of the door panel and the track, compared with “Z” hardware. However, “Z” hardware is typically much easier to install and adjust.

Additional information

Fitting Sets

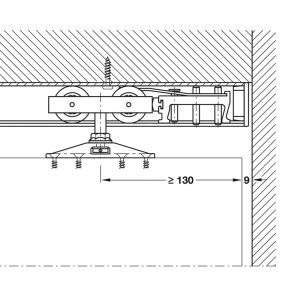

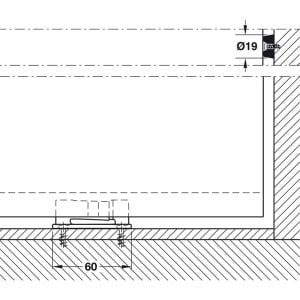

Hawa Junior 80/Z Fitting Set (940.41.001) consists of (2) running gear, (2) two-way suspension fittings with hanger bolts and M10 nut, (1) track buffer with retaining spring, (1) wall buffer, (1) floor guide with zero clearance, (1) height adjusting pin.

Track

Aluminum upper track with clear anodized finish, pre-drilled. Offered in the following lengths: 1.4m (940.80.140), 1.6m (940.80.160), 1.8m (940.80.180), 2m (940.80.200), 2.2m (940.80.220), 2.5m (940.80.250), 3m (940.80.300), 4m (940.80.400), 6m (940.80.600)

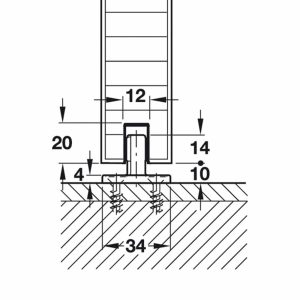

Floor Guide Rail

Plastic Floor Guide Rail (940.41.130) sold in 1.3m lengths.

Angled Profile Kit

Angled Profile Kits available in 2.5m, 4m, and 6m lengths. Can be trimmed to fit. 2.5m Kit includes 2.5m Angled Profile (940.80.212), Track to Profile Fasteners (940.80.099), and Pair of Track End Caps (940.80.067). 4m Kit includes 4m Angled Profile (940.80.413), Track to Profile Fasteners (940.40.099 x 2), and Pair of Track End Caps (940.40.067). 6m Kit includes 6m Angled Profile (940.80.612), Track to Profile Fasteners (940.40.099 x 3), and Pair of Track End Caps (940.40.067).

Soft Closer

Hawa SoftMove 80 (940.80.046), two Hawa SoftMove 80 (940.80.046 x 2), Smuso AD (940.80.043), or two Smuso AD (940.80.043 x 2)
