Hawa Concepta Pivot/Sliding Door Kit

Clear

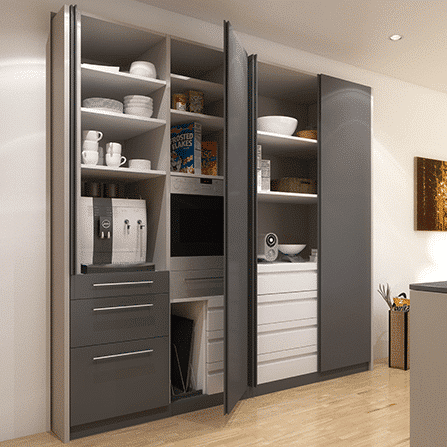

Animation showing the pivot/sliding motion of the Concepta system.

A pivot/sliding door hardware system enabling a door panel to swing open, then to tuck into a pocket alongside the cabinet body. Each kit accommodates one door panel. Consider door panel dimensions and weight when ordering.

SKU: 408.30.045 Category: Brand:
Hawa

Description

Hawa Concepta hardware reduces visual clutter and physical obstructions by allowing storage of open door panels out of the way – perpendicular to the door opening. Have questions? Need help? Contact our knowledgeable representatives at 1-800-298-9696 or sales@partitionplus.com.

  • Mechanism pulls the open door panel into pocket automatically
  • May be used for room partitions (no base or top panel required in wall recesses)
  • For either right or left-hand use
  • Fine adjustments are made from the front of the cabinet
  • Each kit accommodates one door panel. Double doors (two panels) require two Concepta kits
  • Door panels not included
  • Download the Hawa Concepta Pivot/Sliding Door overview (PDF)

All kits include (1) scissor assembly with (2) guides, (1) spacer profile, (1) door stopper with clip-in stopper, (3) alternative profiles and brushes, (1) pair of cover caps, (1) end positioning damper, (1) self-closing mechanism for door, (1) soft stopper bracket, and mounting instructions. Concepta 25 and Concepta 30 kits also include (1) upright with (2) play-free guides, (3) concealed hinges, and (2) guide tracks. Concepta 40 kits also include (1) upright with (2) play-free guides, (4) concealed hinges, (1) guide track, and (1) running track. Concepta 50 kits also include (1) upright with (2) play-free guides, (5) concealed hinges, (1) guide track, and (1) running track.

Door Panel Dimension/Weight Limits

Hawa Concepta 25 (408.30.045) supports door panels with:

Maximum weight of 55 pounds (or 25 kilograms)
Height of 4′ 1-3/16″ to 6′ 13/16″ (or 1250 to 1850 mm)
Width of 11-13/16″ to 29-1/2″ (or 300 to 750 mm)
Thickness of 3/4″ to 1-15/16″ (or 19 to 50 mm)

Hawa Concepta 30 (408.30.046) supports door panels with:

Maximum weight of 66 pounds (or 30 kilograms)
Height of 6′ 7/8″ to 7′ 6-9/16″ (or 1851 to 2300 mm)
Width of 11-13/16″ to 2′ 11-7/16″ (or 300 to 900 mm)
Thickness of 3/4″ to 1-15/16″ (or 19 to 50 mm)

Hawa Concepta 40 (408.30.047) supports door panels with:

Maximum weight of 88 pounds (or 40 kilograms)
Height of 6′ 7/8″ to 8′ 2-7/16″ (or 1851 to 2500 mm)
Width of 11-13/16″ to 2′ 11-7/16″ (or 300 to 900 mm)
Thickness of 3/4″ to 1-15/16″ (or 19 to 50 mm)

Hawa Concepta 50 (408.30.048) supports door panels with:

Maximum weight of 110 pounds (or 50 kilograms)
Height of 7′ 6-9/16″ to 9′ 4-3/16″ (or 2301 to 2850 mm)
Width of 11-13/16″ to 2′ 11-7/16″ (or 300 to 900 mm)
Thickness of 3/4″ to 1-15/16″ (or 19 to 50 mm)

Installation Overview Video

Additional information

Model

Concepta 25 Single Door Kit (408.30.045), Concepta 30 Single Door Kit (408.30.046) (+$78.72), Concepta 40 Single Door Kit (408.30.047) (+$420.81), Concepta 50 Single Door Kit (408.30.048) (+$489.66)
