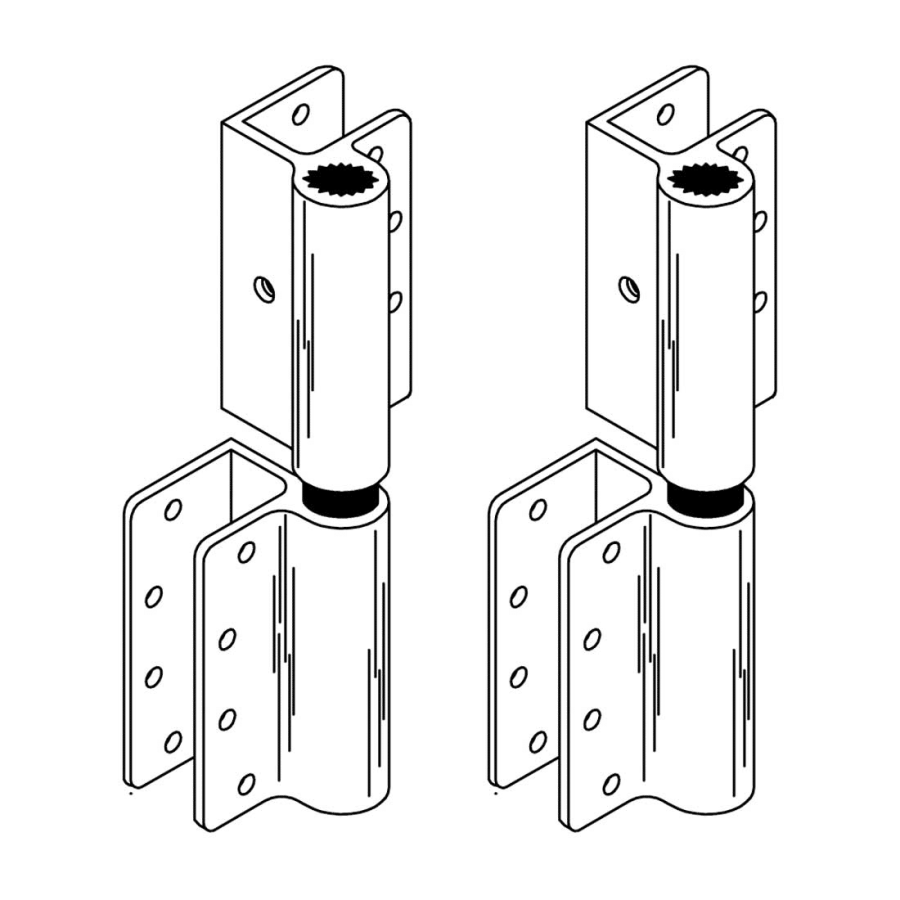

Scranton Products 8″ Aluminum Wrap Around Hinge Set – HHKITAL01


Have partition hardware questions? Call us at 800-298-9696

SKU: HHKITAL01 Category: Brand:
Scranton Products


The wraparound design of this hinge provides heavy-duty support for 1″ thick HDPE toilet partition doors. Manufactured by Scranton Products, this hinge comes standard on many of their partition systems. Features an eye-catching, bright dipped anodized finish. A field adjustable, self-closing cam returns door to a neutral position when open. Predrilled mounting screw holes ease installation. For greater privacy, continuous hinges, in Helix, spring-loaded, and aluminum, spring-loaded designs are also available.

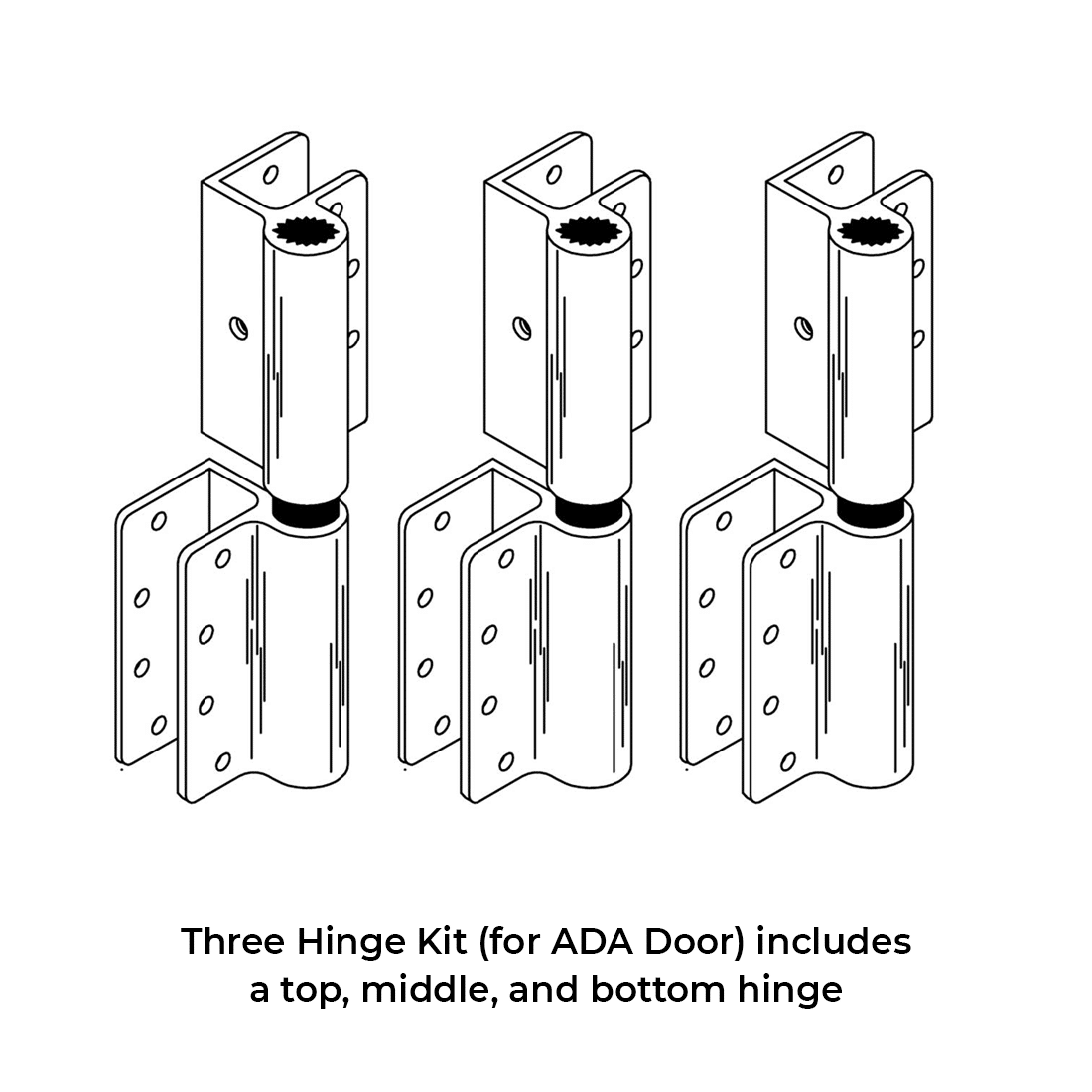

  • Sold as sets of two (for standard doors) or three (for ADA doors)

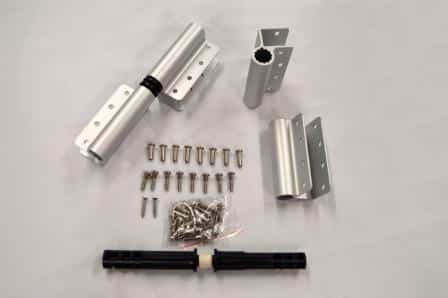

  • Includes fasteners
  • Aluminum construction, bright dipped anodized finish
  • User adjustable open position
  • For use with 1″ thick HDPE toilet partition doors
  • Predrilled for easy installation

Please contact us at or call 800-298-9696 with any questions.

Additional information

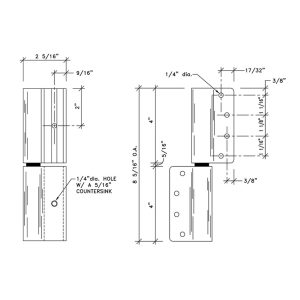

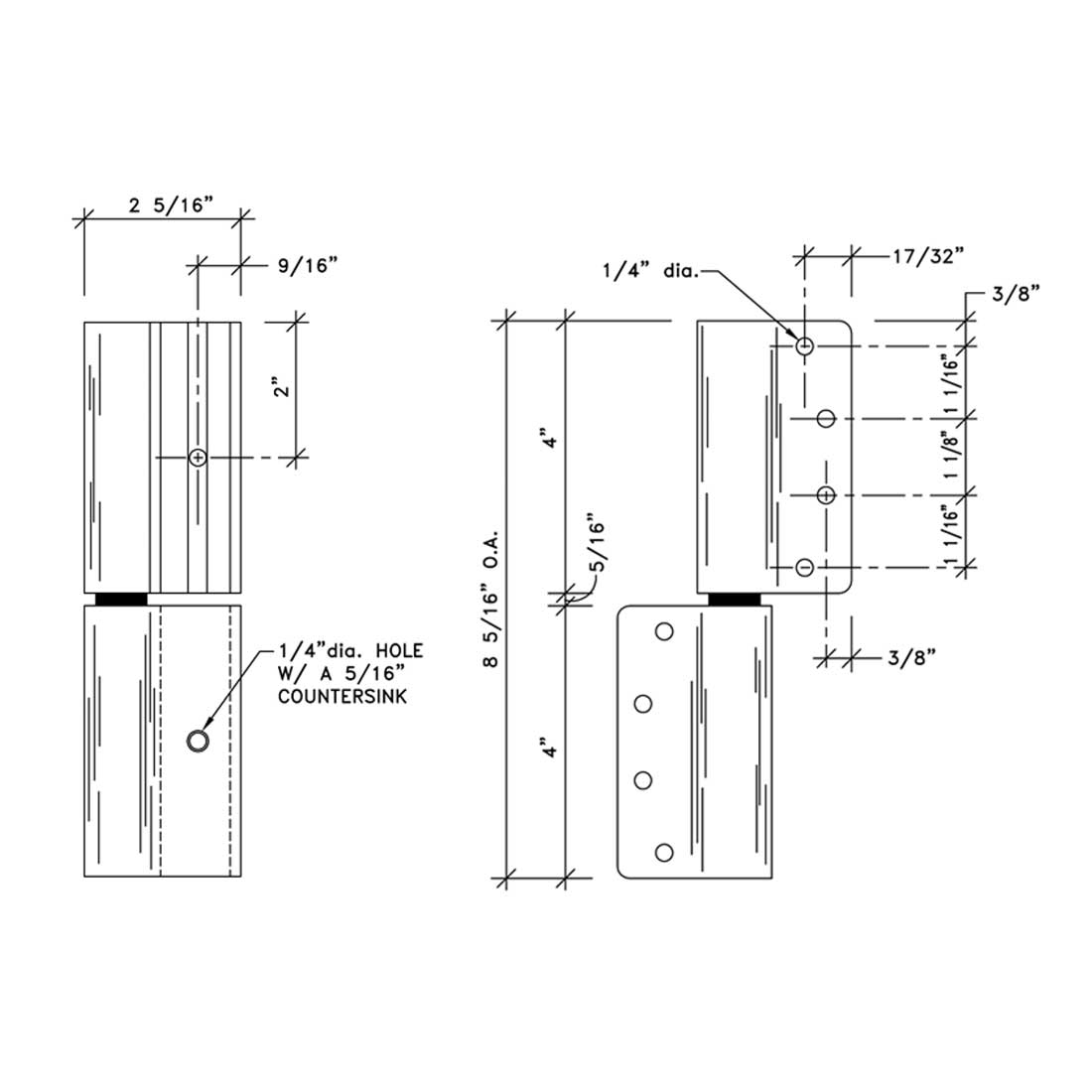

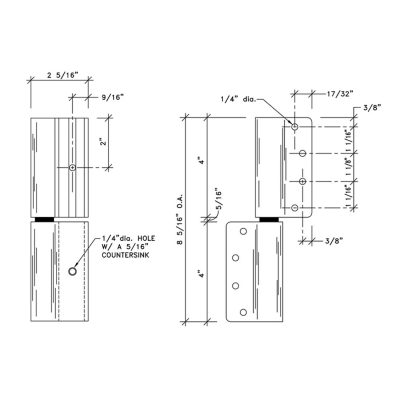

Dimensions 2.3125 × 3.09375 × 8.3125 in

Two Hinge Kit (for Standard Door), Three Hinge Kit (for ADA Door) (+$34.00)
