Scranton Products 54″ Continuous Stainless Steel Helix Hinge – HH545SCAMOP


Have partition hardware questions? Call us at 800-298-9696

SKU: HH545SCAMOP Category: Brand:
Scranton Products

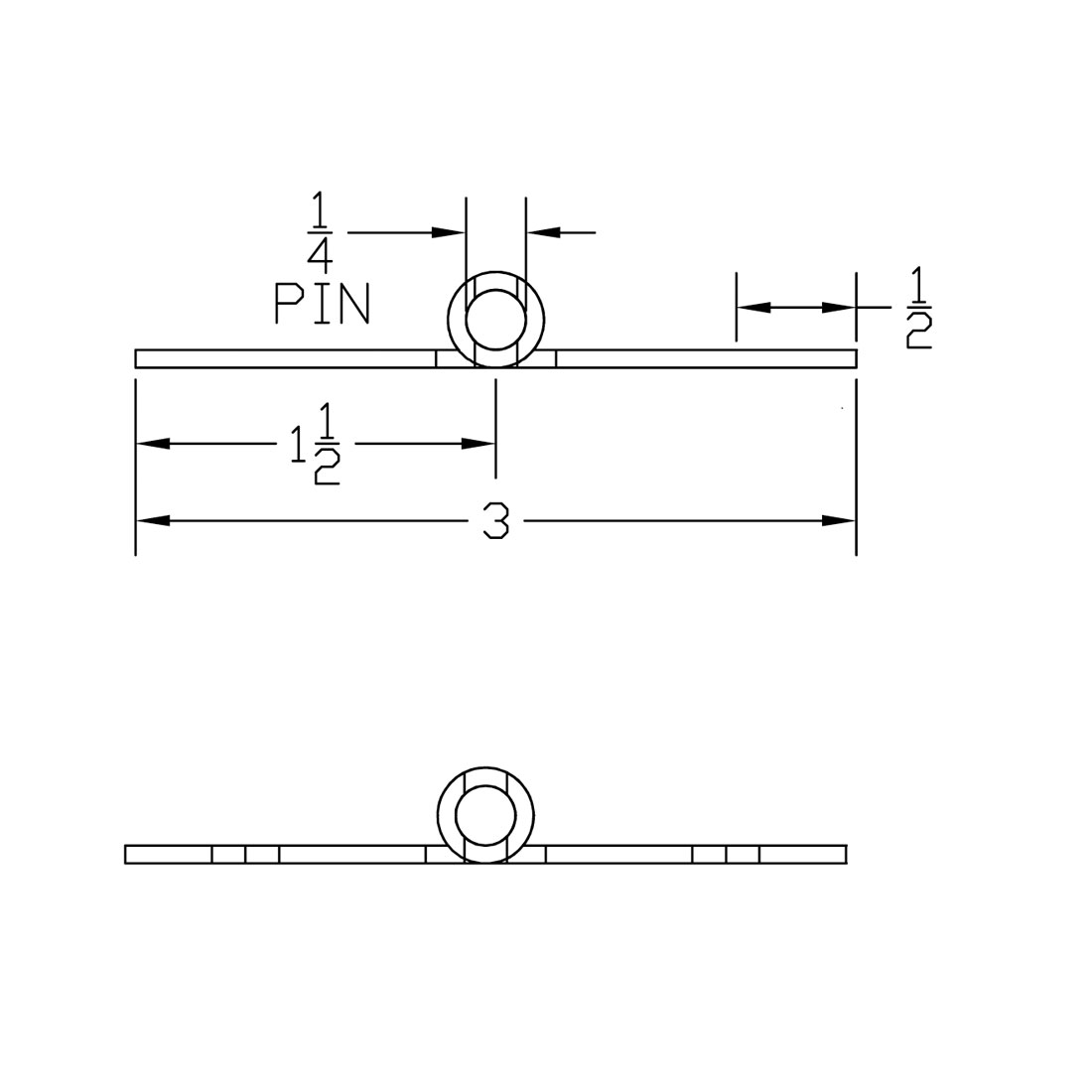

All hinge sightlines are obstructed with this robust stainless “Helix” hinge. Manufactured by Scranton Products, this hinge features 14 gauge, #304 stainless steel construction with a brushed finish. Installation is made easy thanks to predrilled mounting screw holes. Available in 54″, 63.5″ and 71.5″ heights. Leaves are joined with a 1/4″ stainless steel pin that is welded and ground. Unique “Helix” interleaving design enables gravity self-closing functionality. In-swing and out-swing configurations available. Out-swing features a closed neutral position, while the in-swing is set at 15 degrees open.

Does your project call for a spring-loaded continuous hinge? We offer 54″, 63.5″ and 71.5″ models by Scranton Products. We also sell a continuous spring hinge made from aluminum by Scranton Products.

  • Includes fasteners
  • Manufactured by Scranton Products
  • #304, 14 gauge stainless steel construction

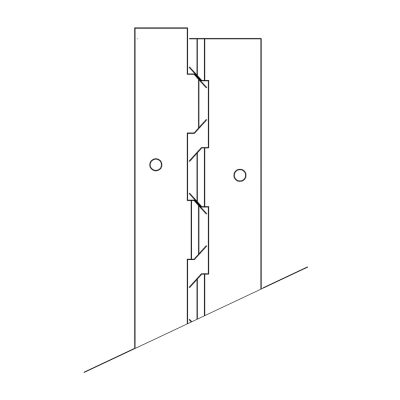

  • “Helix” design self-closes
  • Predrilled for quick installation

Please contact us at or call 800-298-9696 with any questions.

Additional information

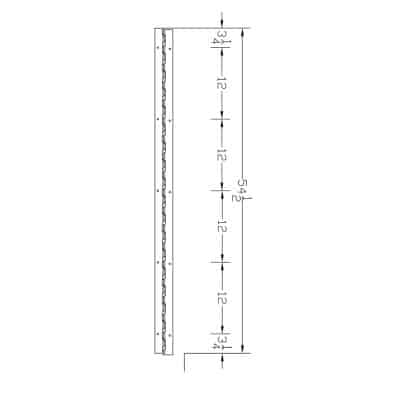

Dimensions 54.5 × 3 in

Inswing, Outswing


54", 63.5" (+$58.70), 71.5" (+$120.33)
