Description

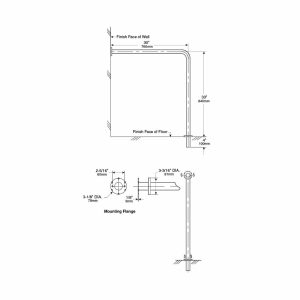

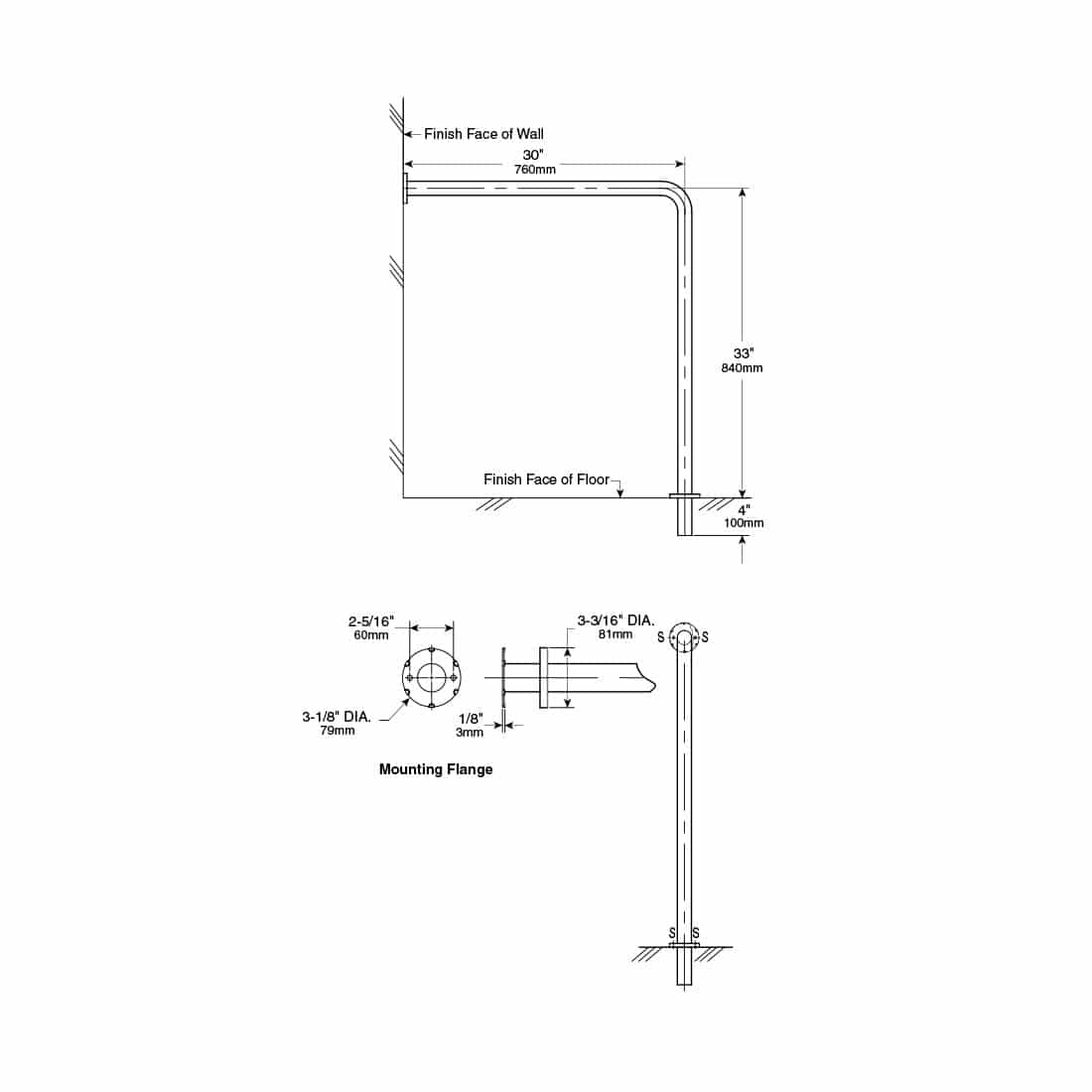

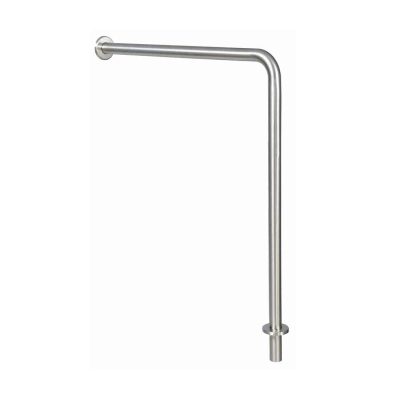

The 819388 grab bar, from Bobrick, is designed to attach to a vertical wall, project 30” (760mm) outward, turn 90 degrees downward extending 33” (840mm) to the finish face of the floor, with a 4” (100mm) length extending into the floor socket.
- Vertical length is 33” (840mm), measured from floor (to center of tube)
- Horizontal run is 30” (760mm), measured from wall (to center of tube)
- Tubing is 1 1/2″ (38mm) outside diameter
- Satin finish is standard
- Grab bar load capacity depends on installation-surface and anchor strength
- Flanges constructed with two or more screw holes for versatile mounting
- Permanently attached covers snap over flanges to conceal screws (or fasteners) used in mounting
- Download the Bobrick 819388 Technical Data Sheet (PDF)
