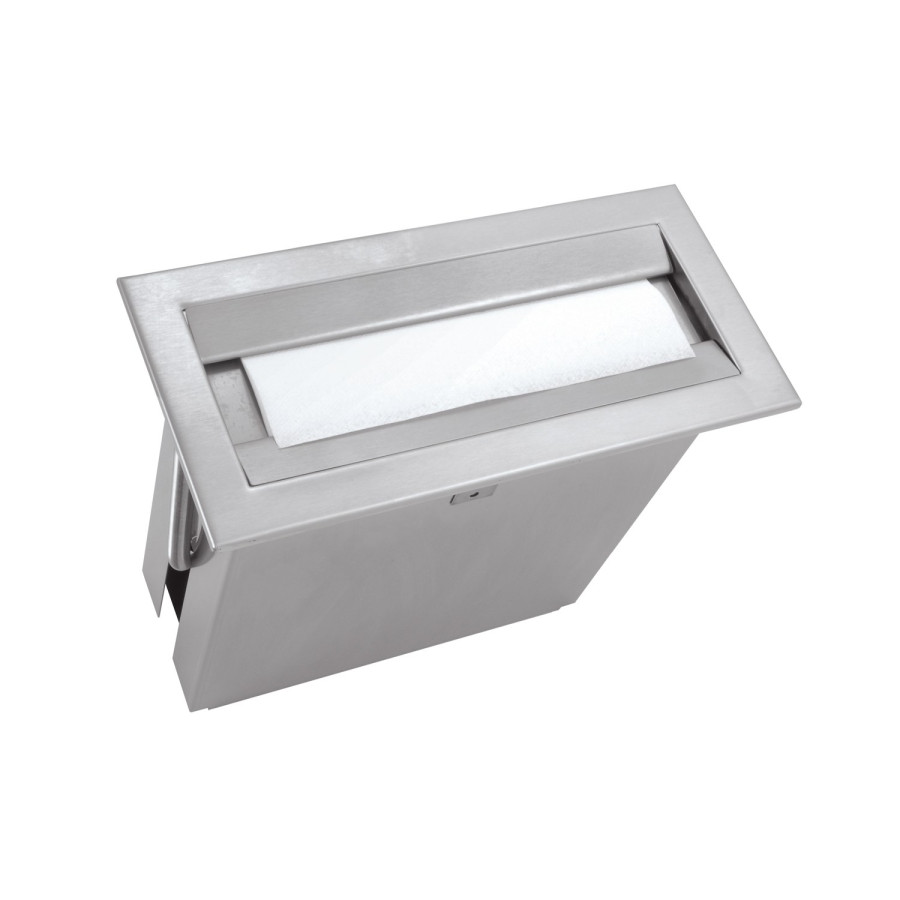

Bobrick TrimLine Countertop Paper Towel Dispenser B-526



SKU: B-526 Category: Brand:

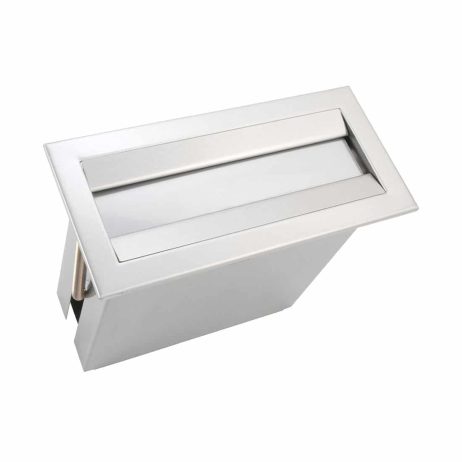

Supply paper towels from the lavatory/countertop – just inches from restroom wash basins. The B-526 TrimLineSeries paper towel dispenser, from Bobrick recess mounts into horizontal surfaces like lavatories, vanity tops, and counter tops. The unit can also slot into vertical surfaces like table aprons, skirts, or the front of cabinets.

  • Loads using a patented “push through” design – press towels downward into the dispenser through the two hinged towel retainers

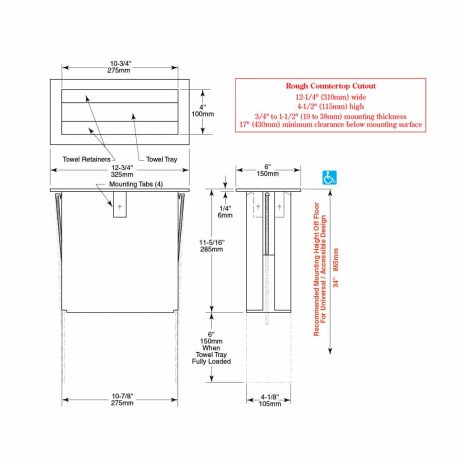

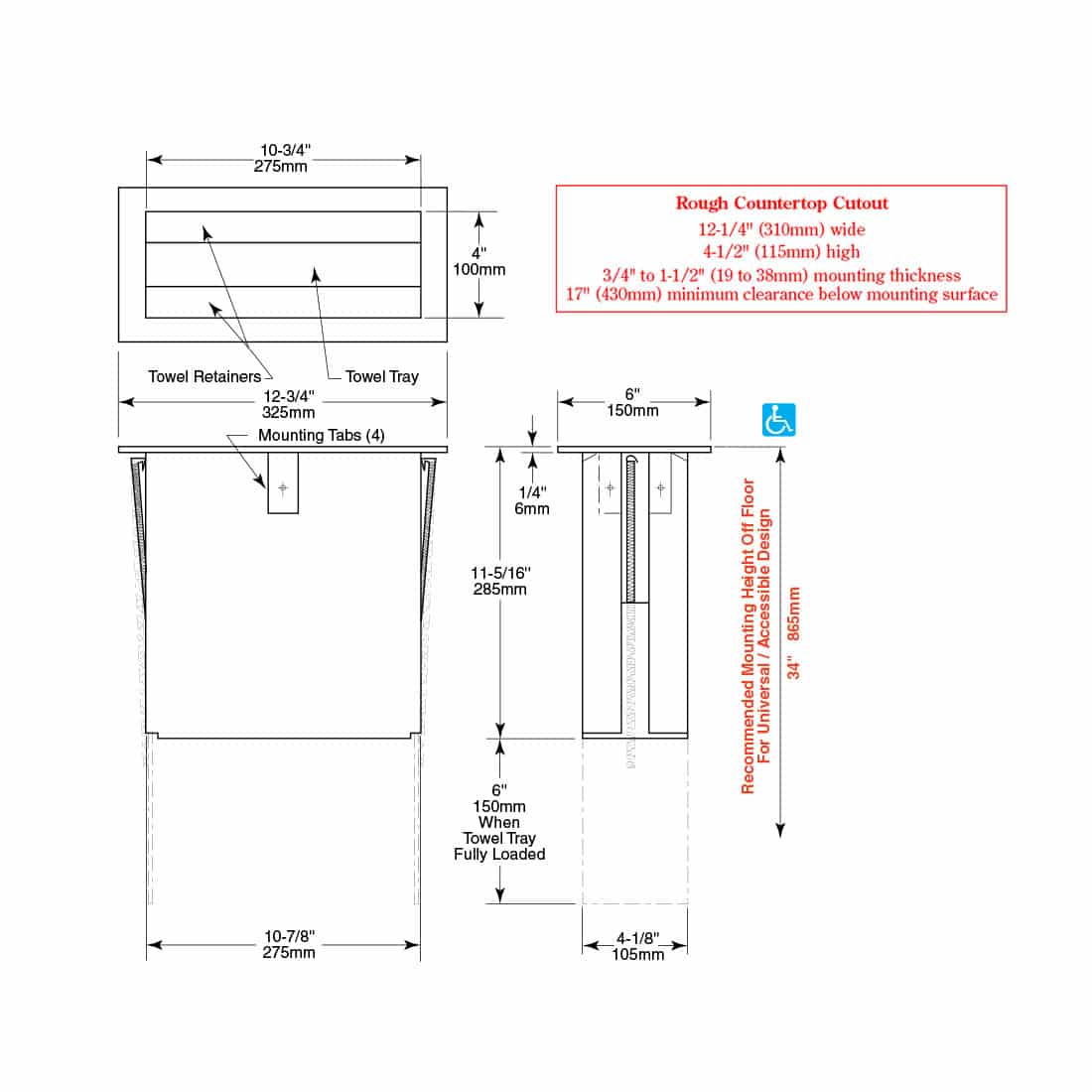

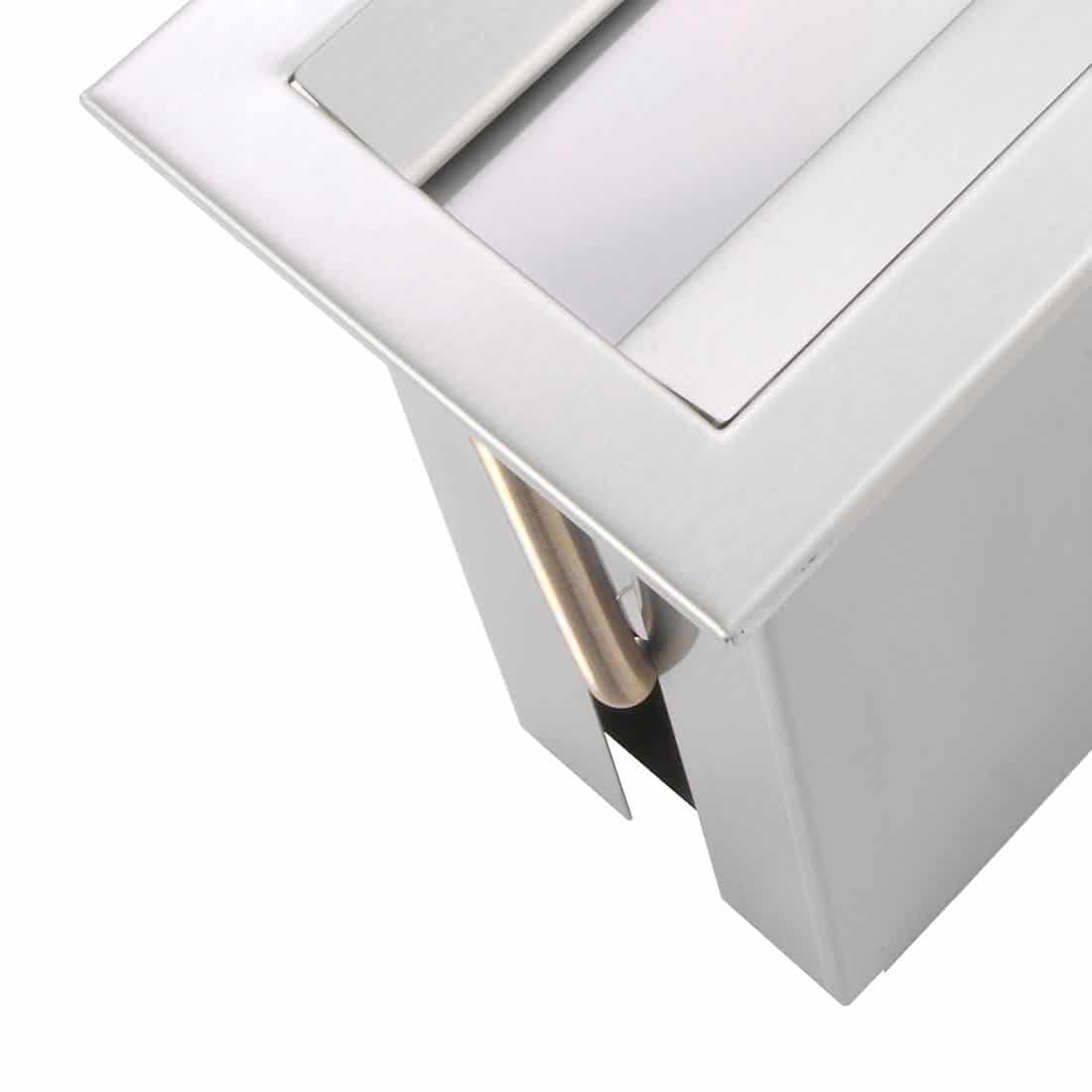

  • Mounting tabs accommodate mounting surface thicknesses from ¾” (19mm) to 1 ½” 38mm), cabinet features all welded construction
  • A housing to conceal this towel dispenser is not included with the B-526 unit, and must be furnished by other

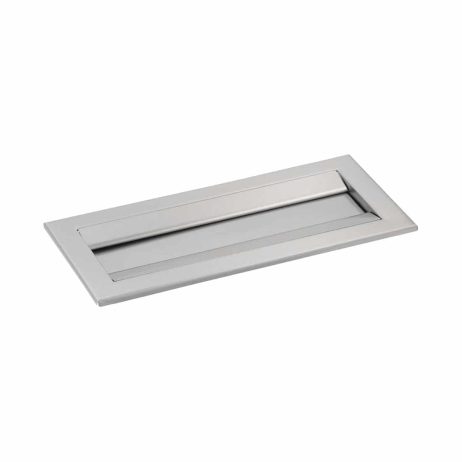

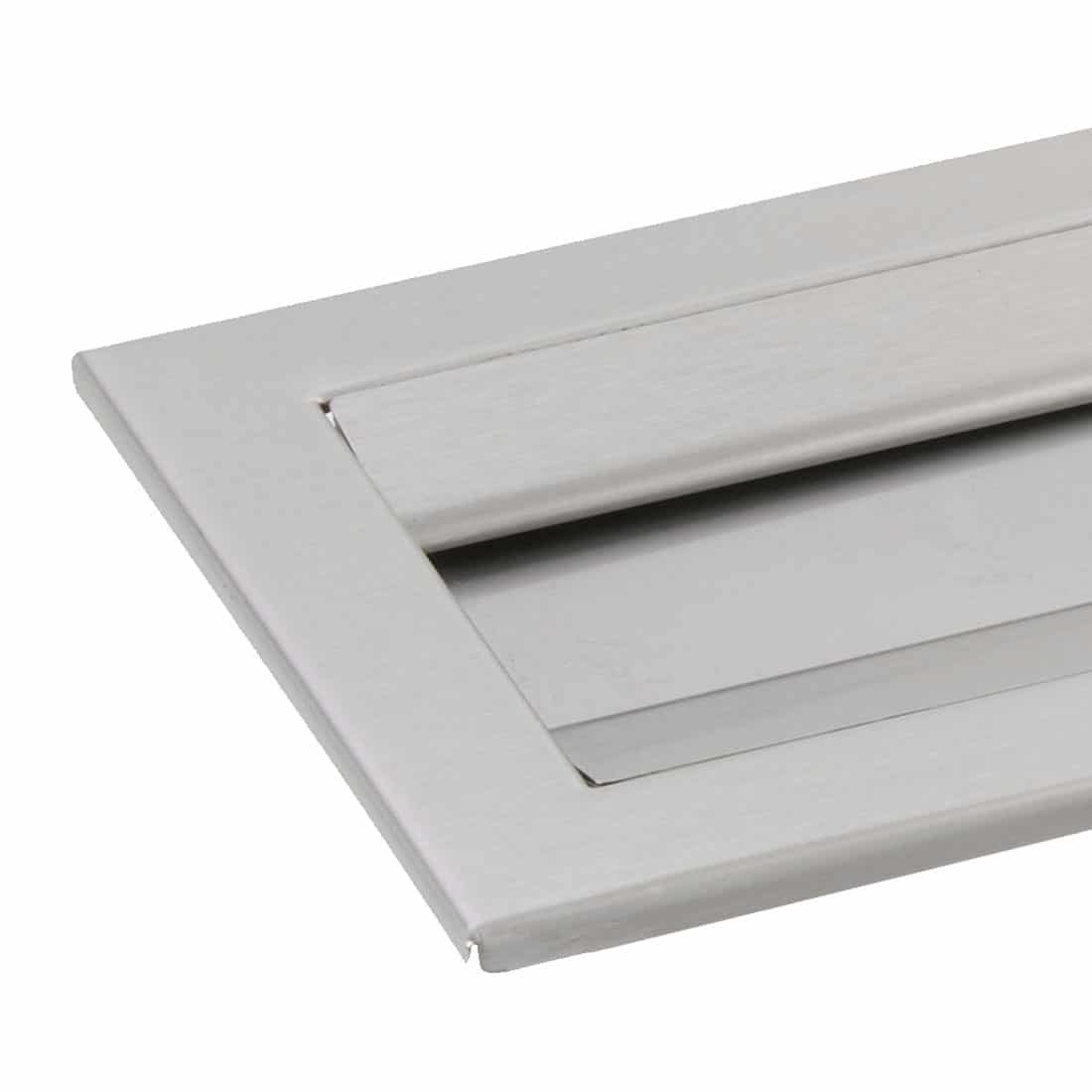

  • Flange measures 12 ¾” (325mm) wide by 6” (150mm) deep
  • 17” (430mm) minimum clearance below mounting surface is required
  • Accepts 300 C-fold or multifold paper towels
  • Download the Bobrick B-526 Technical Data Sheet (PDF)

Additional information

Dimensions 6 × 12.75 × 17 in
