Bobrick Alcove Joggle Bracket Panel In-Line with Stile – 1000282

$22.00

SKU: 1000282 Category: Brand:
Bobrick

Description

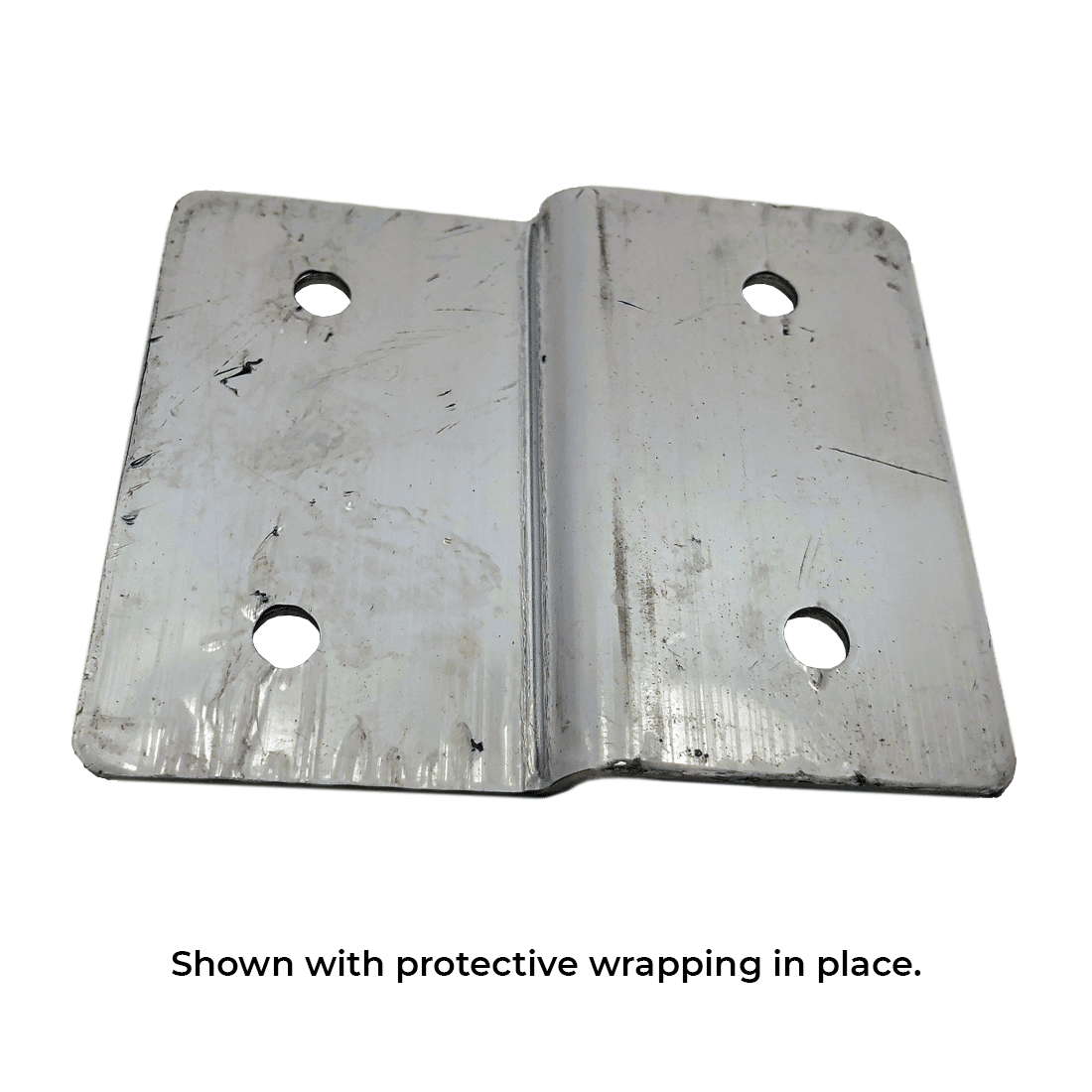

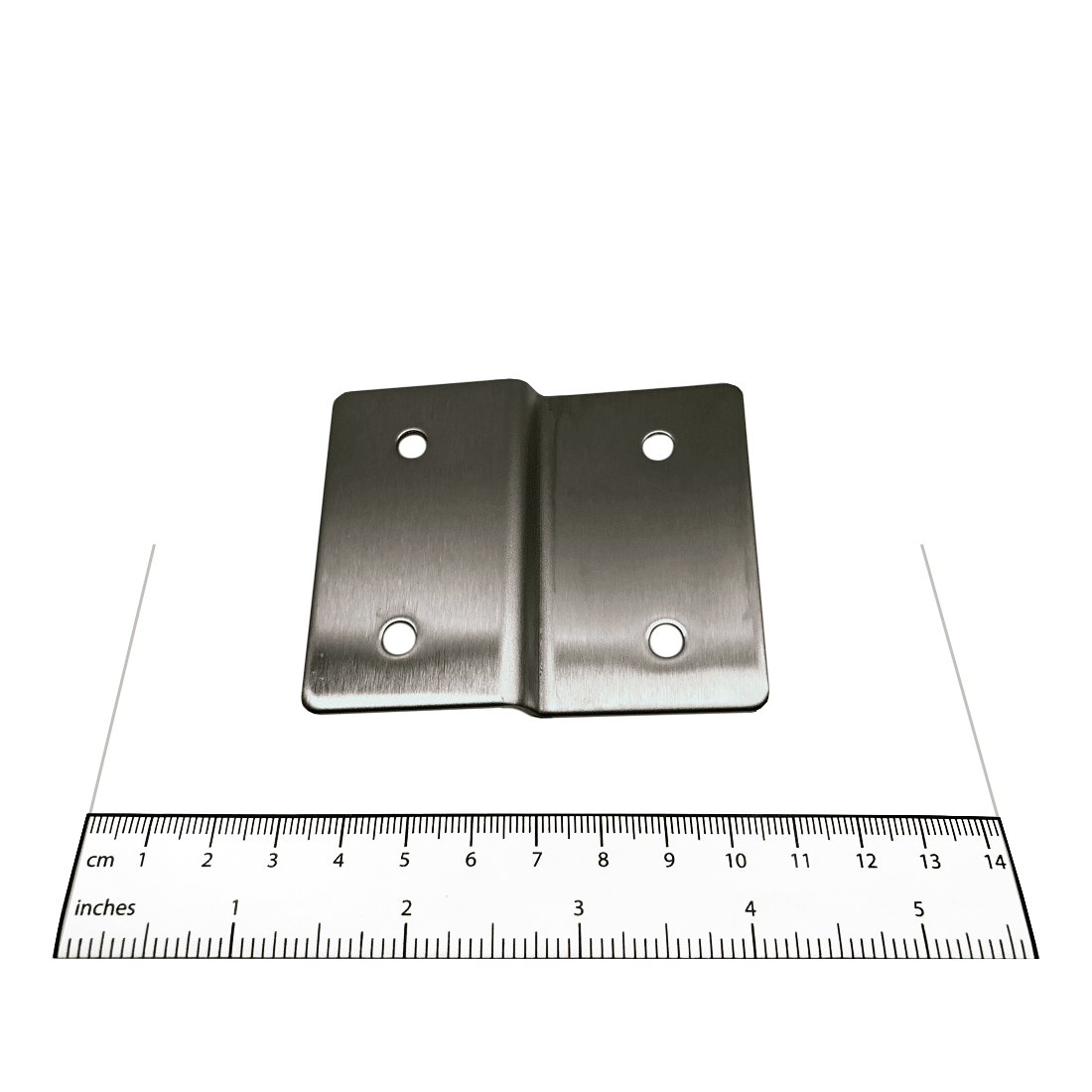

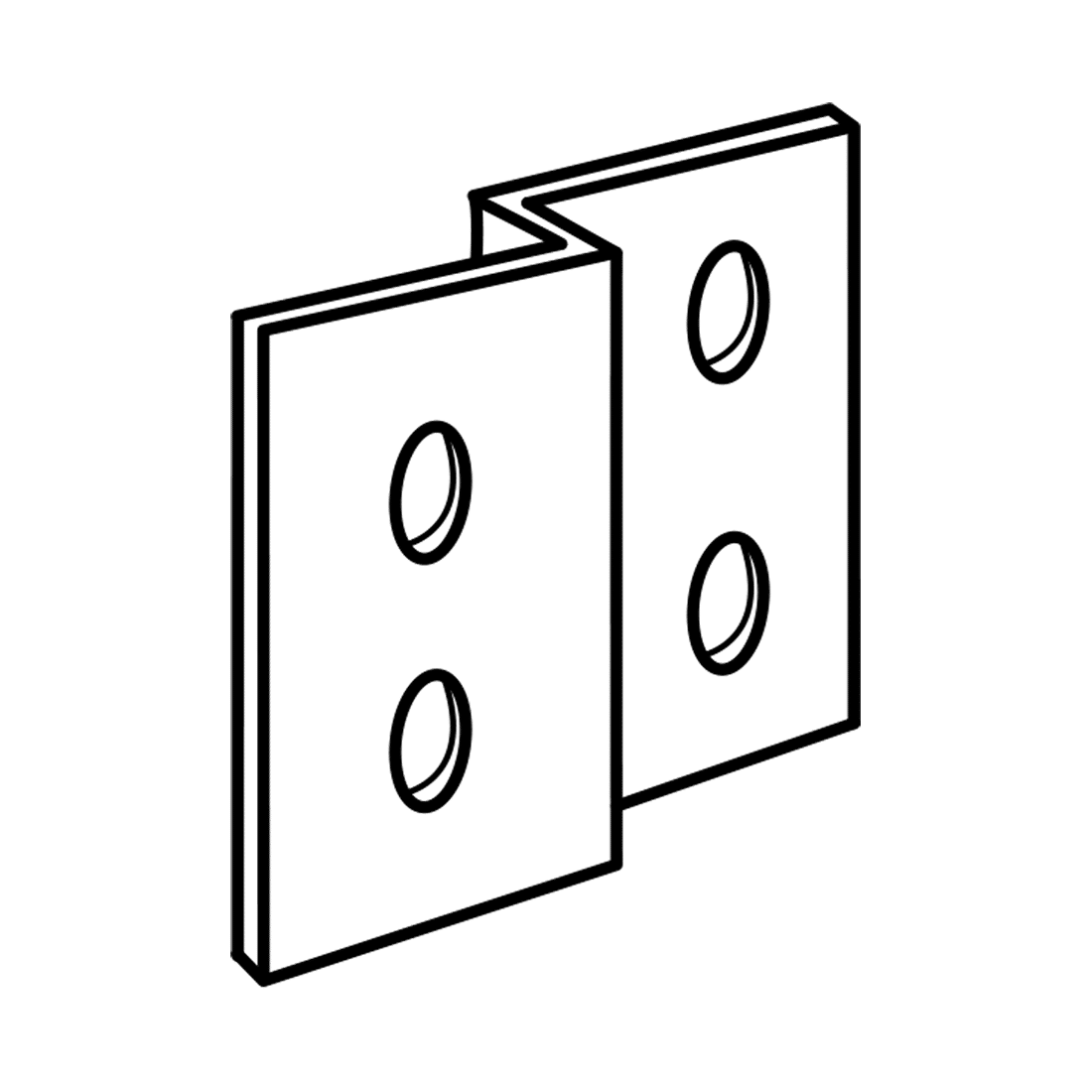

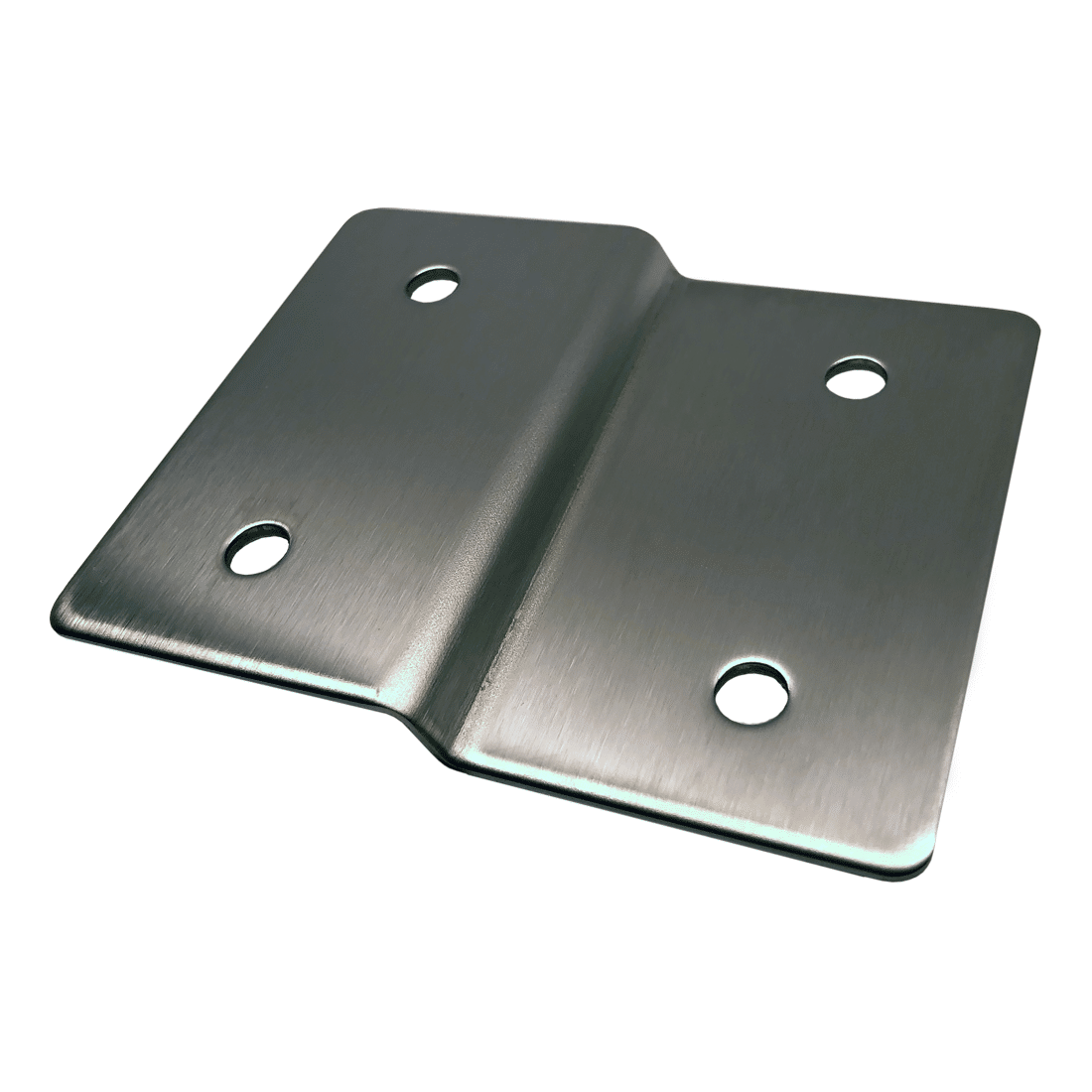

Bobrick’s alcove joggle bracket (1000282) allows 1/2″ thick panels to attach to 3/4″ thick stiles (pilasters) in an in-line configuration. Joggle brackets look like a stair step when viewed in profile – because they must join different thickness panels positioned end-to-end. When properly installed, no hardware is visible from outside the stall. This bracket features (4) total pre-drilled mounting holes – two each on both the panel and stile sides.

  • OEM hardware, direct from Bobrick
  • Satin stainless steel finish coordinates with other Bobrick hardware
  • 18-8, type 304 heavy gauge stainless steel construction

Additional information

Weight 0.01 lbs
