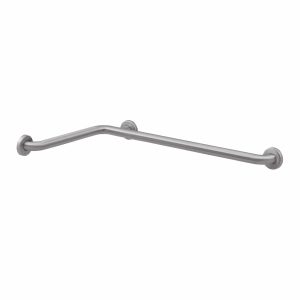

Bobrick 1 ½” Diameter Two-Wall Grab Bar B-6861 satin finish.

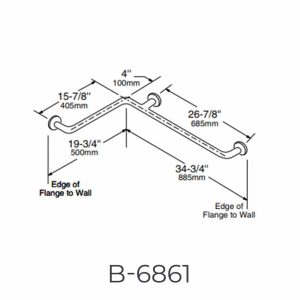

Bobrick 1 ½” Diameter Two-Wall Grab Bar B-6861 detailed dimensions line drawing.

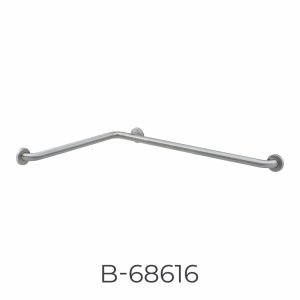

Bobrick 1 ½” Diameter Two-Wall Grab Bar B-68616 satin finish.

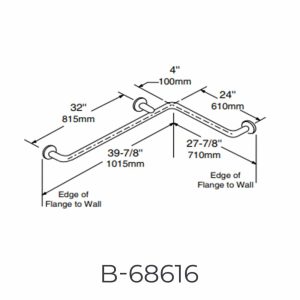

Bobrick 1 ½” Diameter Two-Wall Grab Bar B-68616 detailed dimensions line drawing.
Bobrick 1 ½” Diameter Two-Wall Grab Bar B-68137 satin finish.

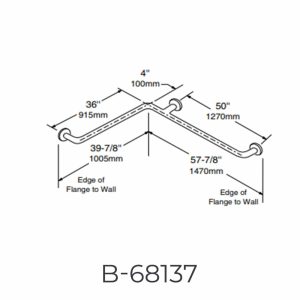

Bobrick 1 ½” Diameter Two-Wall Grab Bar B-68137 detailed dimensions line drawing.

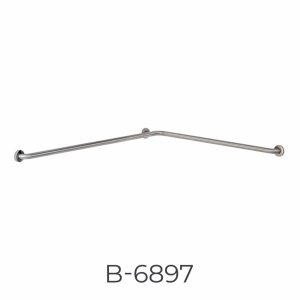

Bobrick 1 ½” Diameter Two-Wall Grab Bar B-6897 satin finish.

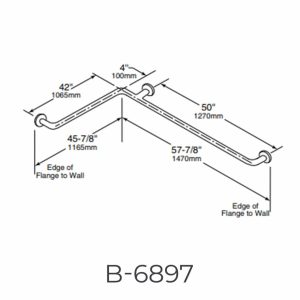

Bobrick 1 ½” Diameter Two-Wall Grab Bar B-6897 detailed dimensions line drawing.

Bobrick 1 ½” Diameter Two-Wall Grab Bar B-6861

SKU:B-6861

Call about quantity discounts for this item


SKU: B-6861 Category: Brand:
Bobrick

Description

Bobrick’s two-wall grab bars are manufactured from satin finish, stainless steel tubing with 1 ½” (38mm) outside diameter. Tubing is 18-8 S, type 304, 18 gauge stainless, while concealed mounting flanges are 18-8 S, type 304, 11 gauge stainless. Snap covers are 18-8 S, type 304, 22 gauge stainless.
  • Multiple sizes and variations available
  • Satin finish is standard, satin finish with peened gripping surface optional
  • Clearance (inside bar to wall distance) is 1 ½” (38mm)
  • Grab bar load capacity depends on wall and anchor strength
  • Flanges constructed with two or more screw holes for versatile mounting
  • Permanently attached covers snap over flanges to conceal screws (or fasteners) used in mounting
  • Download the Bobrick B-6806 Technical Data Sheet (PDF)

Additional information

Weight 3.50 lbs
Dimensions 33.50 × 20.0 × 3.250 in
Dimensions & Finish

19 3/4" x 34 3/4" Satin (B-6861), 19 3/4" x 34 3/4" Peened (B-6861.99) (+$61.58), 27 7/8" x 39 7/8" Satin (B-68616) (+$2.07), 27 7/8" x 39 7/8" Peened (B-68616.99) (+$66.24), 39 7/8" x 57 7/8" Satin (B-68137) (+$6.55), 39 7/8" x 57 7/8" Peened (B-68137.99) (+$68.65), 45 7/8" x 57 7/8" Satin (B-6897) (+$27.77), 45 7/8" x 57 7/8" Peened (B-6897.99) (+$34.15)
