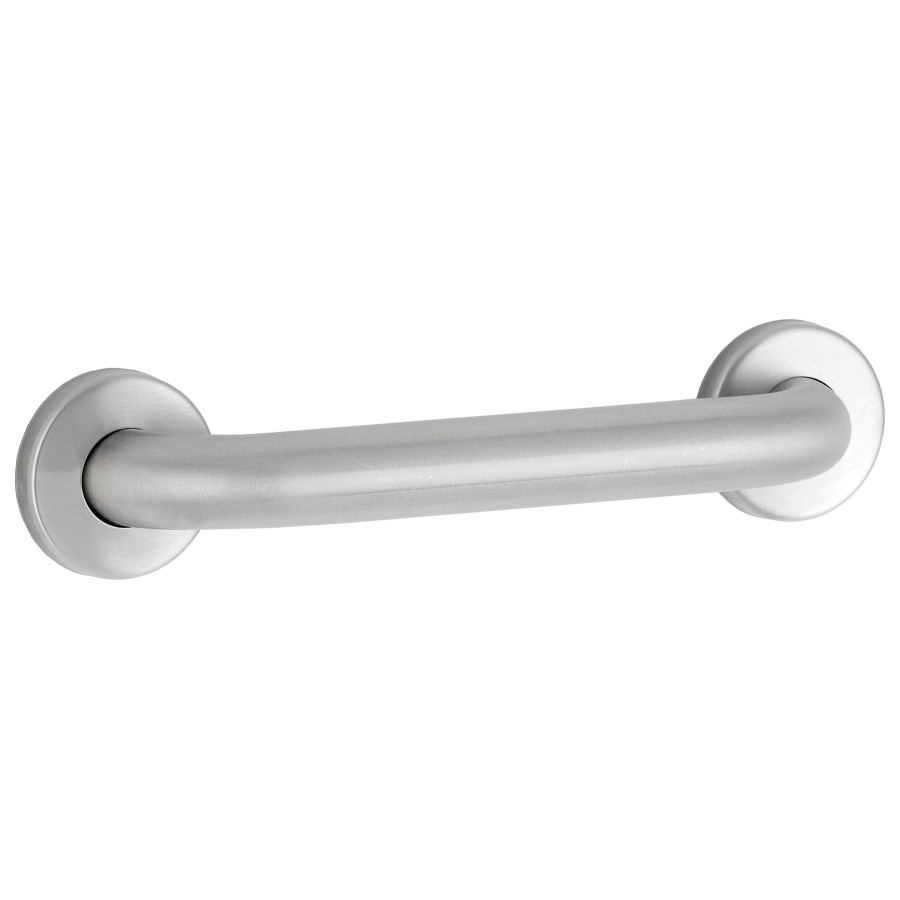

Bobrick 1 ½” Diameter Straight Grab Bar B-6806

Clear
SKU: B-6806 Category: Brand:
Bobrick

Description

Grab bars in the Bobrick B-6806 series are manufactured from satin finish, stainless steel tubing with 1 ½” (38mm) outside diameter. Tubing is 18-8 S, type 304, 18 gauge stainless, while concealed mounting flanges are 18-8 S, type 304, 11 gauge stainless. Snap covers are 18-8 S, type 304, 22 gauge stainless.

  • Multiple lengths available
  • Satin finish is standard, satin finish with peened gripping surface optional
  • Clearance (inside bar to wall distance) is 1 ½” (38mm)
  • Bar designs with 1 ½” (38mm) wall clearance can support loads exceeding 900 lbs (408kg) when installed per recommendations, other configurations can support loads exceeding 250 lbs (113kg) when properly installed
  • Grab bar load capacity depends on wall and anchor strength
  • Flanges constructed with two or more screw holes for versatile mounting
  • Permanently attached covers snap over flanges to conceal screws (or fasteners) used in mounting
  • Download the Bobrick B-6806 Technical Data Sheet (PDF)

Additional information

Dimensions 3 × 15.25 × 3.25 in
Length & Finish

12" Satin, 18" Satin (+$0.52), 24" Satin (+$2.76), 30" Satin (+$4.14), 36" Satin (+$7.07), 42" Satin (+$9.83), 48" Satin (+$15.18), 12" Peened (+$2.93), 18" Peened (+$8.80), 24" Peened (+$11.39), 30" Peened (+$14.15), 36" Peened (+$15.87), 42" Peened (+$17.77), 48" Peened (+$22.25)
