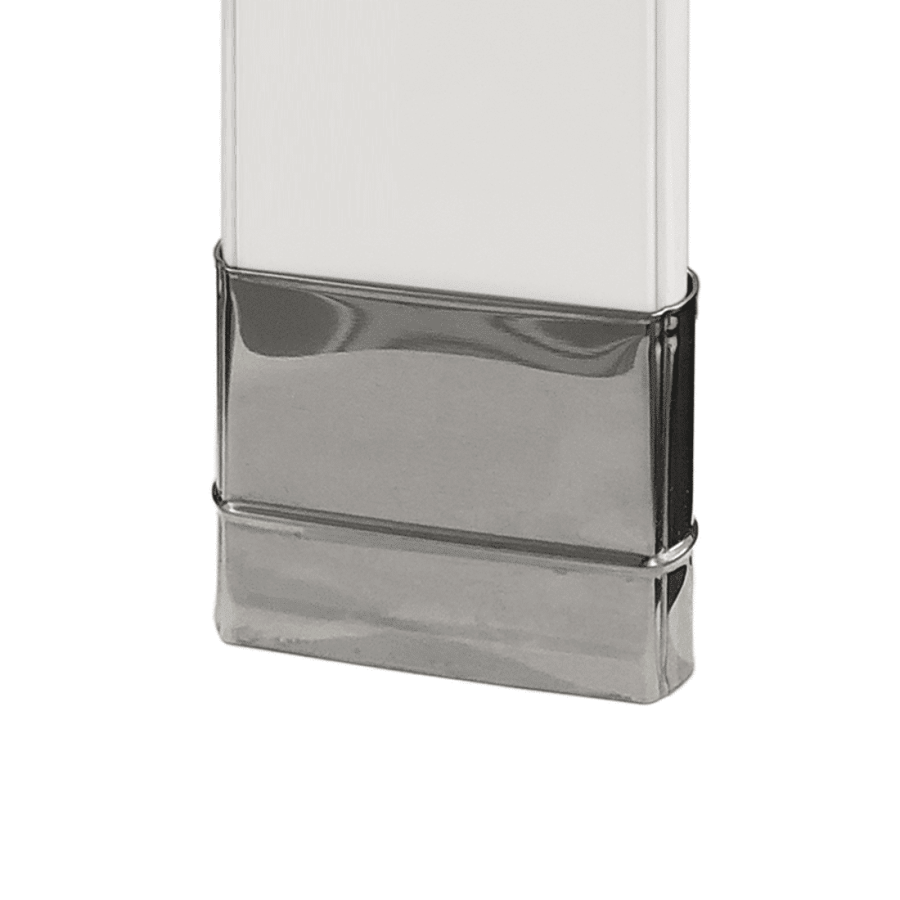

Hadrian Pilaster Shoe (Various Sizes) – 550003-900

Clear
Have partition hardware questions? Call us at 800-298-9696
SKU: 550003-900 Category: Brand:
Hadrian Manufacturing

Description

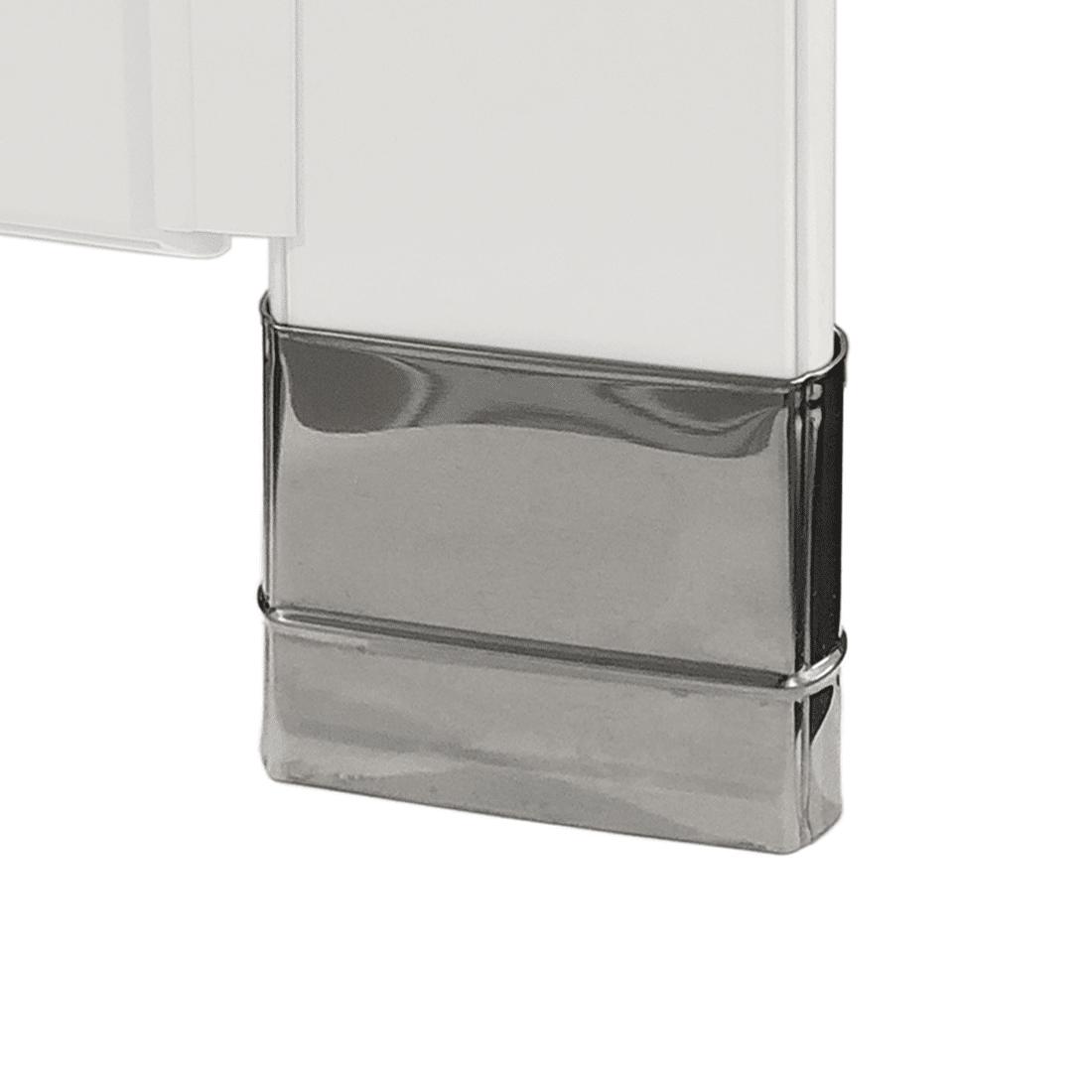

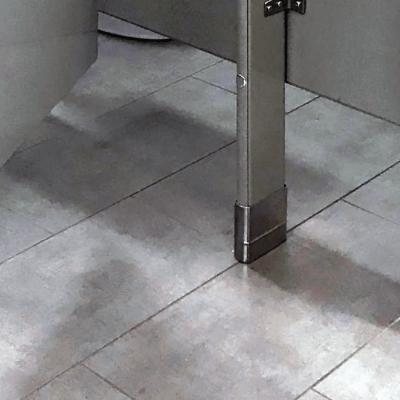

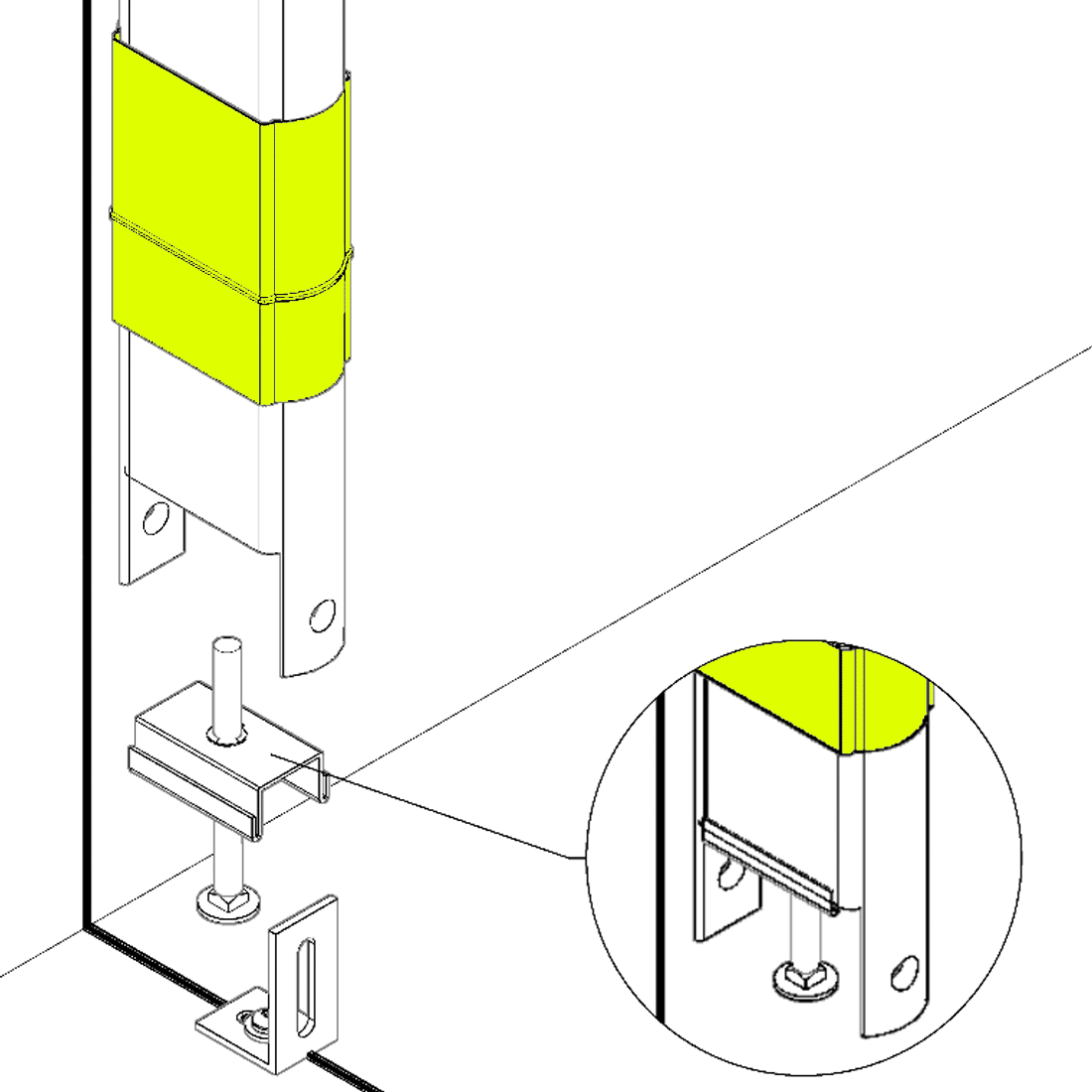

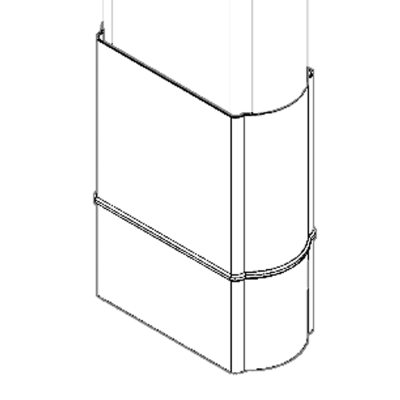

These Hadrian pilaster shoes are compatible with powder-coated steel and stainless steel toilet partition pilasters that are 1-1/4″ thick. When correctly installed, this shoe will completely hide the pilaster’s leveling channel and leveling bolt, along with the floor bracket and associated fastening hardware. The #4 brushed stainless steel band also deters denting and scuffing of the pilaster’s surface.

Hadrian produces its toilet partition shoes using a closed – not split – design. While this makes replacing a damaged or missing shoe slightly more involved (you must detach the pilaster from the floor), the closed configuration is sure to stay in place and will limit the amount of hardware necessary for installation or repairs. Hadrian manufactures shoes in a range of widths to accommodate all popular pilaster sizes:

  • 3″ Pilaster Shoe, Brushed Stainless Steel – 550003-900
  • 4″ Pilaster Shoe, Brushed Stainless Steel – 550004-900
  • 5″ Pilaster Shoe, Brushed Stainless Steel – 550005-900
  • 6″ Pilaster Shoe, Brushed Stainless Steel – 550006-900
  • 7″ Pilaster Shoe, Brushed Stainless Steel – 550007-900
  • 8″ Pilaster Shoe, Brushed Stainless Steel – 550008-900
  • 10″ Pilaster Shoe, Brushed Stainless Steel – 550010-900
  • 12″ Pilaster Shoe, Brushed Stainless Steel – 550012-900
  • 14″ Pilaster Shoe, Brushed Stainless Steel – 550014-900
  • 18″ Pilaster Shoe, Brushed Stainless Steel – 550018-900
  • 20″ Pilaster Shoe, Brushed Stainless Steel – 550020-900
  • 23″ Pilaster Shoe, Brushed Stainless Steel – 550023-900
  • 24″ Pilaster Shoe, Brushed Stainless Steel – 550024-900

Installing replacement pilasters or refreshing your partition hardware? Consider new brackets – used to attach panels and pilasters to the wall. Concealed latch and surface-mounted latch parts are also available. Please contact us at sales@partitionplus.com or call 800-298-9696 with any questions.

Additional information

Weight 1 lbs
Dimensions N/A
Width

3", 4" (+$1.04), 5" (+$2.08), 6" (+$3.64), 7" (+$4.68), 8" (+$5.72), 10" (+$7.80), 12" (+$9.88), 14" (+$11.96), 18" (+$16.64), 20" (+$19.24), 23" (+$22.36), 24" (+$25.48)
